Multi Cores - Armoured Cables

Electric Cables → Medium Voltage → Multi Cores - Armoured

Multi Cores Armoured
 Send Enquiry

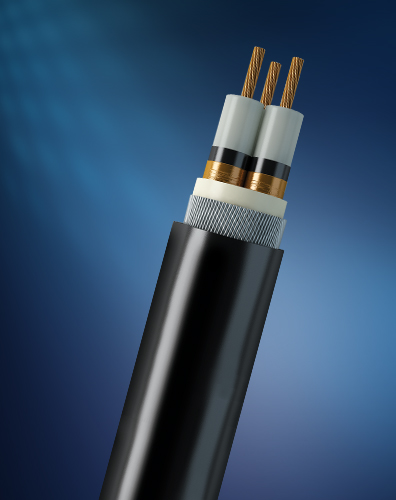

Multi Cores - Armoured

Conductor Type Copper/Aluminium
Conductor Construction Circular Stranded Compacted as per IEC 60228
Description CU/XLPE/SWA/PVC or CU/XLPE/STA/PVC or AL/XLPE/SWA/PVC or AL/XLPE/STA/PVC
Rated voltage 3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV
Sizes Up to 630 Sq. mm
Standard IEC 60502-2
Metallic Screen Copper Wires/Copper Tape
Bedding PVC compound/LSHF/PE
Armoring Galvanized Steel Tape or Steel Wire Armored
Outer Jacket PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)
Special Features

In Green Cables most up to date process machines of the best worldwide companies in the field are used that ensurs the best Quality Low Voltage Cables with a long operation life.

Low Voltage Cables can also be customized as per BS, SEC, ARAMCO, DEWA, ADEWA & other utilities specifications or customer’s special requirements with wide range of Screening, Armoring & Sheathing Options.

Lead Sheathed Cables can also be provided to Oil, Gas and Petrochemicals Sector.
